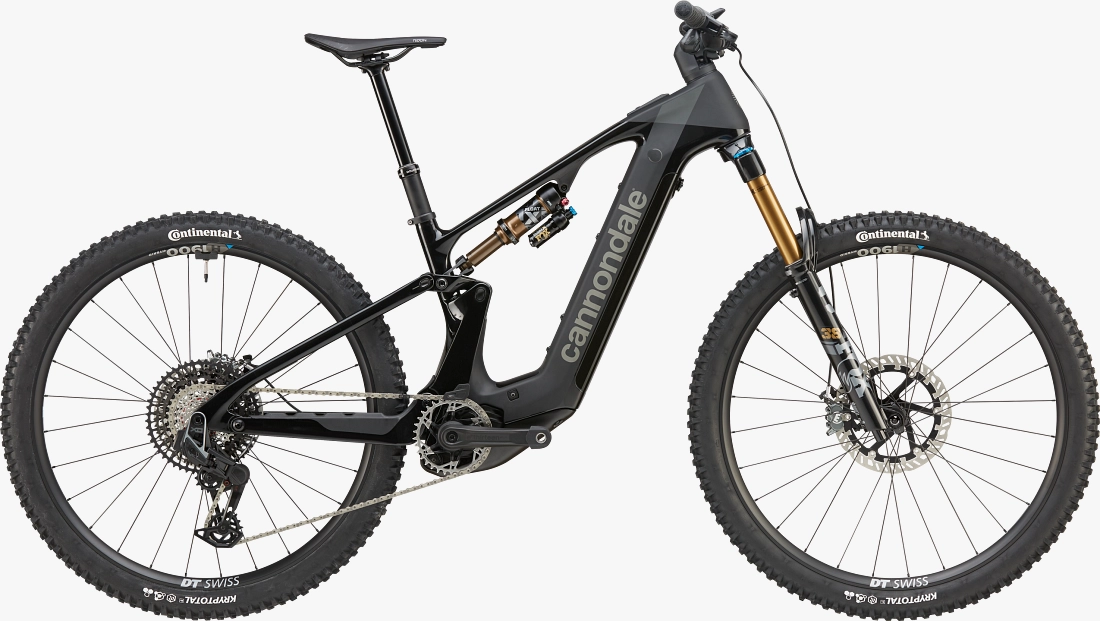

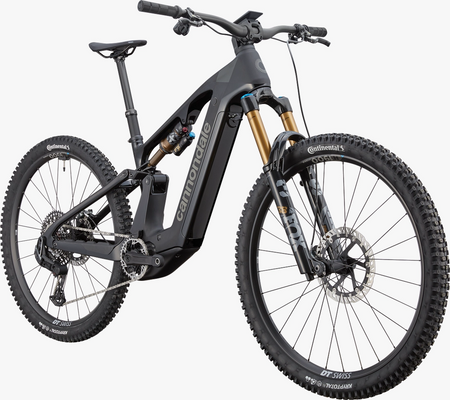

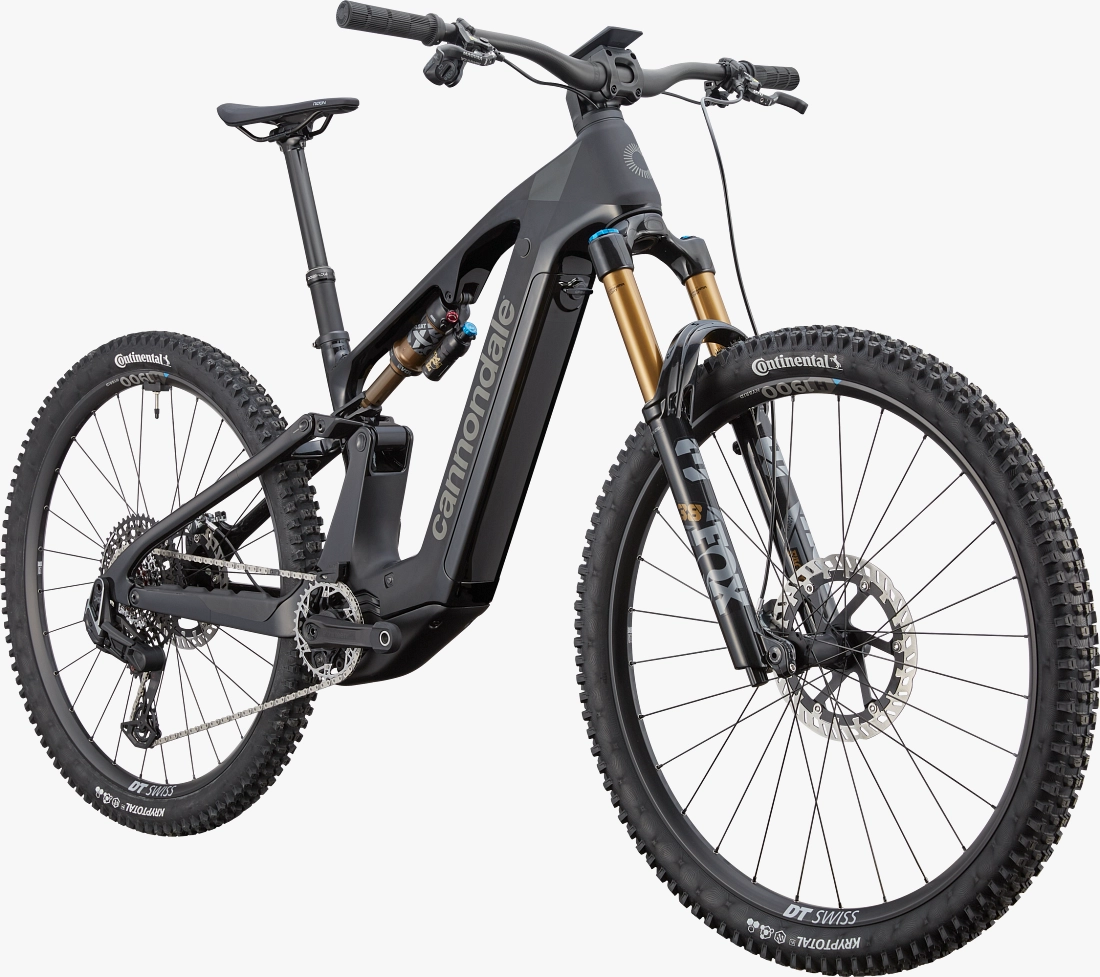

Cannondale Moterra 1

Rahmenset

• Rahmen

  Moterra Carbon, 29" wheels, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5” – 1.8” tapered headtube, 40mm two-bolt kickstand compatible
• Gabel

  Fox Float Factory 38, 160mm, GripX2 Damper, Kashima coating, 15x110mm Kabolt thru-axle, tapered steerer, 44mm offset
• Steuersatz

  Acros ICR, 1.5" to 1.8", sealed bearings
• Rear Shock

  Fox Float X Factory, Kashima coating, 2 pos adj, EVOL LV, 230x62.5mm

E-System

• Motor

  Bosch Performance Line CX
• Batterie

  Bosch PowerTube, 800Wh
• Ladegerät

  Bosch 4A
• Display

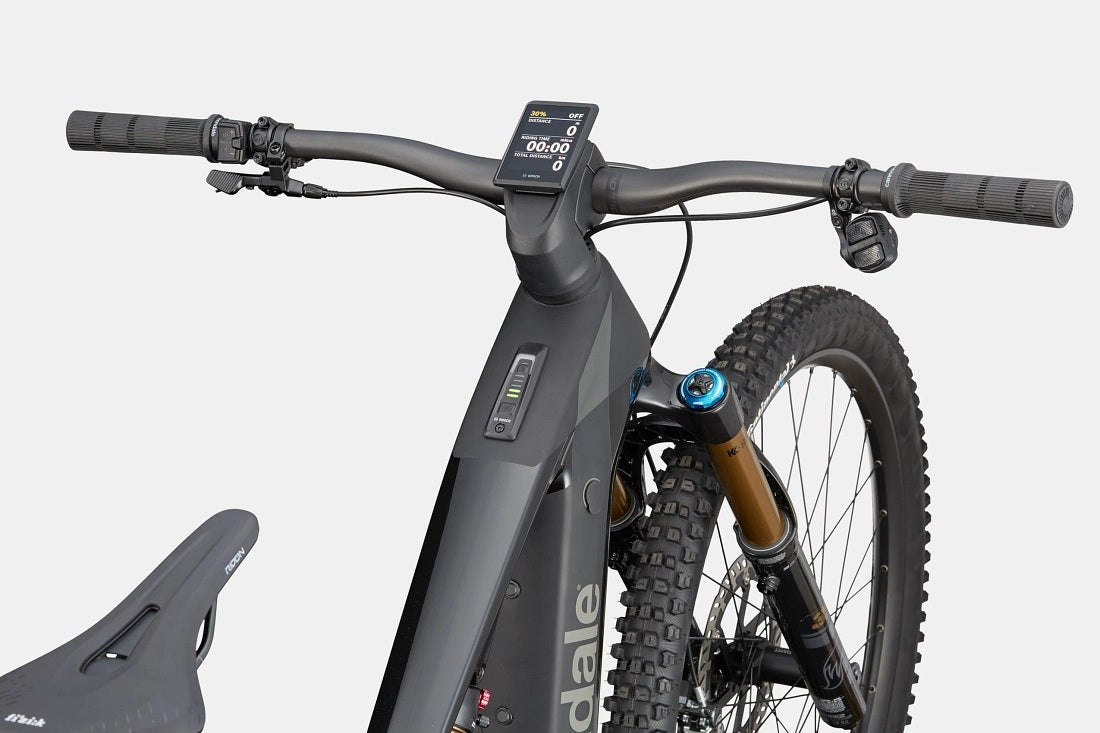

  Top Tube System Controller w/ Bosch Kiox 500 & Mini Remote

Antrieb

• Schaltwerk

  SRAM XO Eagle AXS, T-Type
• Schalthebel

  SRAM Eagle AXS T-Type Pod Controller
• Kette

  SRAM GX T-Type, 12-speed
• Kurbel

  e*thirteen e*spec Helix Core, 55mm chainline, 160mm, 34T
• Kassette

  SRAM GX Eagle T-Type, 10-52, 12-speed

Bremsen

• Bremsen

  Magura MT7 4-piston hydraulic disc, 220/203mm MDR-P rotors
• Bremshebel

  Magura MT7 hydraulic disc

Laufräder

• Felgen

  DT Swiss H 1900 Spline, 30mm inner width, TC (tubeless ready)
• Speichen

  DT Swiss Competition, straight pull
• Reifengröße

  2.4
• Reifendimension

  29
• Naben

  (F) DT Swiss 370, 15x110mm thru-axle / (R) DT Swiss 370 Ratchet System 18, 12x148mm thru-axle, 6-bolt
• Reifen

  (F) Continental Kryptotal-F, 29x2.4", Enduro Soft Black Foldable / (R) Continental Kryptotal-R, 29x2.4", Enduro Soft Black Foldable
• Vorderreifen

  Continental Kryptotal-F, 29x2.4", Enduro Soft Black Foldable
• Hinterreifen

  Continental Kryptotal-R, 29x2.4", Enduro Soft Black Foldable

Komponenten

• Lenker

  HollowGram SAVE riser bar, Carbon, 35mm clamp, 30mm rise, 8° sweep, 5° rise, 780mm
• Vorbau

  Cannondale Trail HeadsUp w/ integrated display mount, 3D Forged 6061 Alloy, 1-1/8", 45mm, 0°
• Griffe

  Cannondale TaperRidge
• Sattel

  Fizik Terra Aidon X5, 145mm, Wingflex, S-Alloy Mobius rail
• Sattelstütze

  Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL)

Extra

• Extra 1

  Tubeless Valves, Bosch PowerMore range extender compatible
